Product DescriptionCompany Info.<>
- Brand:
- TR
- Principle:
- Vacuum filtration
- Style:
- Vertical type
- Applicable object:
- Transformer oil
- Model:
- ZJA-J50PLC
- Filter type:
- Fibre
- Performance:
- High efficiency filtration
- Rated flow:
- 3 m3/h
- Working pressure:
- 0.4 MPa
- Operating noise:
- 60-80 dB
- Inlet and outlet pipe diameter:
- 32 mm
- Deemulsification number:
- 10 min
- Cleanliness:
- 6 NAS
- Overall dimension:
- 00 mm
- Effective filtration area:
- 00 ㎡
- Machine power:
- 49 kw

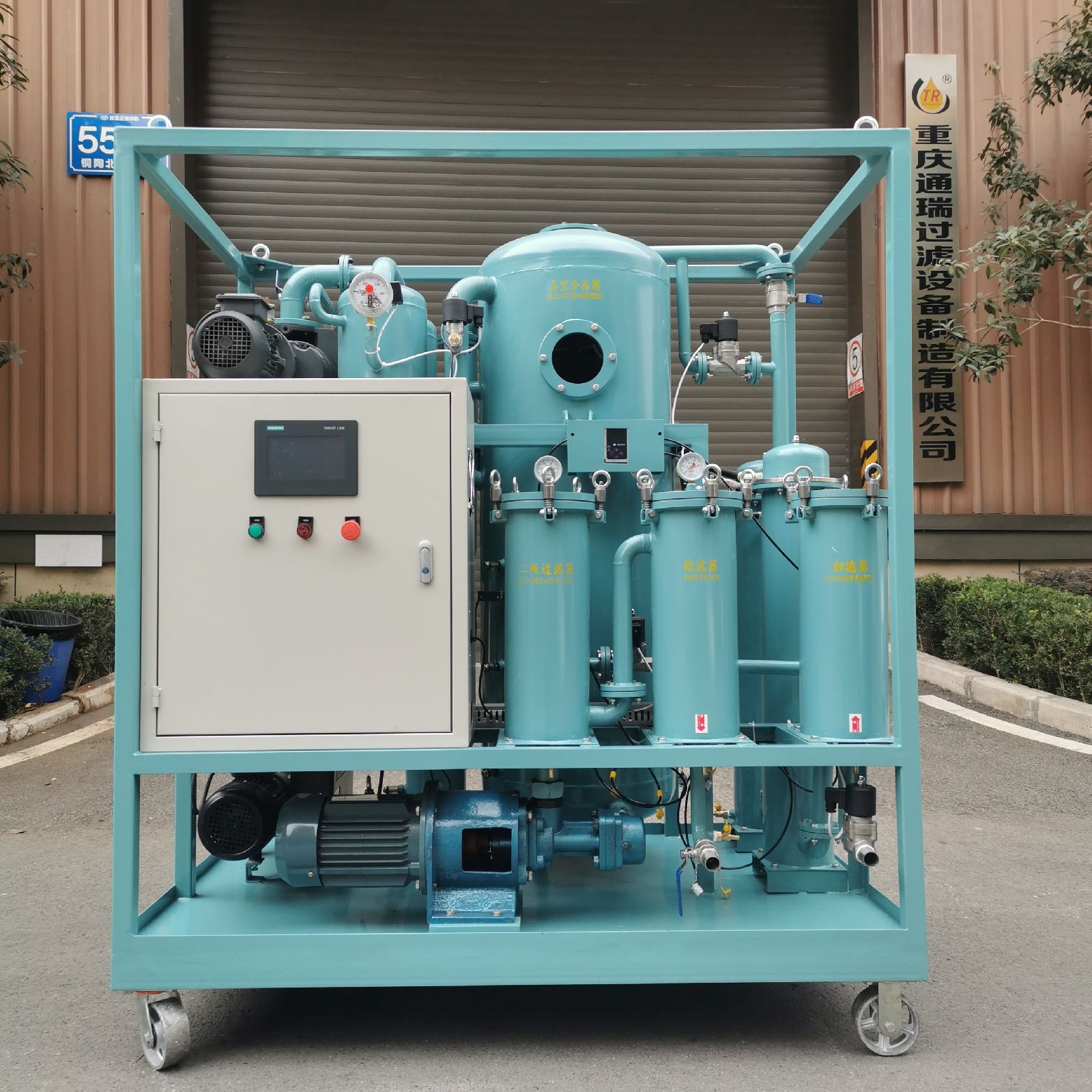

ZJA series Vacuum oil purifier transformer oil processing plant
Parameters of double stage transformer oil filtration machine
Item Unit ZJA-J30 ZJA-J50 ZJA-J75 ZJA-J100 ZJA-J150 ZJA-J200 ZJA-J300 Flow rate L/H 1800 3000 4500 6000 9000 12000 18000 Vacuum degree Mpa -0.092~ -0.099 Ultimate vacuum Mpa ≤50 Working pressure Mpa ≤0.3 Working temperature ℃ 45~65 Power supply 380V/50HZ(or as per requirements) Noise dB(A) ≤78 Heating power kW 30 45 54 72 96 108 120 Total power kW 34 49 60 79 105 118 131 Inlet&outlet size mm 25 32 42 42 50 50 60 OIL INDEX AFTER TREATMENT Breakdown voltage KV 75 Water content ppm 3~5 Gas content % ≤0.1 Impuriry um 1~5 No free carbon
Advantages
The Advantages of double stage transformer oil filtration :
1.outdoor use with roof,close/open ventilation window,skid basic mounted,enough lifting hook.
2.Besides the features of ZJB series vacuum purifier, it’s added roots booster pump system, the secondary high vacuum air extracting system for rapidly removal of gas and moisture. It avoids the weakness that displacement sharp declines while the vacuum purifier working at a high vacuum degree. Performance of one cycle of processing is equivalent to two units common vacuum purifier.
3.High extraction speed double vacuuming systems which is able to utmostly enhance the vacuum environment of internal vacuum tank to make high vacuum. Ultimate vacuum ≤5Pa, working vacuum ≤35Pa, keep the oil temperature during processing to fulfil the vacuuming requirement of installation or maintenance site, highly reduced oil processing period.4.After filtration, the di-electric strength and flash point is higher, after one cycle of filtration, breakdown voltage increases 3-5kv, effectively avoid oil ageing resulted from repeatedly heating.
5.High performance configuration: advanced infrared liquid level control system, pressure protection system and oil pump interlock controlled to ensure long time and safely operation.6.The unit able to maintain energized transformers and long time online operation, fitted automatic de-foam facility for working in plateau area, it can be automatically working without people’s supervision.High precision and intelligent degas system is able to remove all sorts of gas from oil rapidly, avoid the existing of hydrogen, ethyne, ensure the content of ethyne of oil after treated to “zero”.
7.One machine two function, both vacuum purifier and vacuum unit, it can be used for vacuum filling for insulation units, it is able to reduce transformer installation and maintenance time, the product is at the leading position of this field.
When Do You Choose double stage transformer oil filtration ?
Compared with double stage transformer oil filtration , this machine is more quickly and more completely in dehydration, degasification and trash extraction; it makes the oil limited voltage- withstand value much higher. This machine has two purposes, which one as purification equipment; another can be an independent vacuum power supply. Besides, it can short the oil treating duration during installation and maintenance of transformer.
flow structure
